Unique viable birth of ultra-high pressure and high temperature spinning drop interfacial tensiometer from USA KINO

USA KINO has finished development of ultra-high pressure and high temperature spinning drop interfacial tensiometer. It can reach max pressure 70Mpa and max temperature 200℃ for spinning drop method. Thanks for its high pressure and high speed dynamic sealing technology, it makes unique viable birth of high pressure (max 70Mpa) and high temperature (200℃) cans true.

Main specification as shown below:

1, Max pressure: 70Mpa;

2, Max temperature: 200℃ with build-in heating system

3, Pressure and temperature readout: read direct pressure and temperature of spinning tube;

4, Provide an extra port for adding compressed air such as CO2 or natural gas. Please be noted that the gas dissolved in the liquid will affect the interfacial tension.

5, Provide two High pressure screw piston pump

6, sample tube: made of quartz glass (max 20Mpa) and  sapphire glass (max 80Mpa) with ID 4mm

7, max speed of motor: 10,000RPM

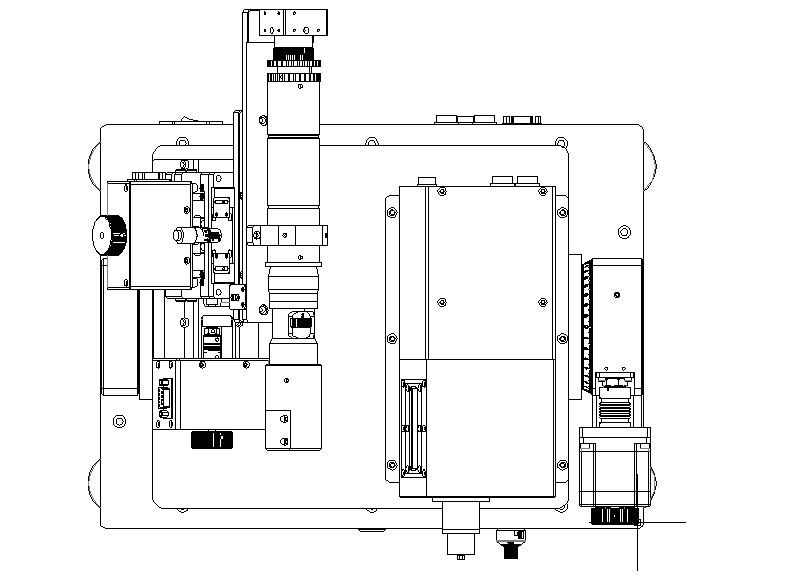

Structure diagram of high pressure and high temperature spinning drop interfacial tensiometer is as shown below:
